Important: Please ensure your setup meets these requirements before proceeding:

• You must be using either a Cloud Gateway device or Official Ubiquiti Hosting
• Your controller must be reachable from the internet on port 443
• Ubiquiti Network application version 9.0.108 or higher required
• Self-hosted controllers are not currently supported

1. Access Integration Settings

• Navigate to your Porter Dashboard
• Select Account from the main menu
• Click on Integrations
• Under Network Infrastructure, click Add Ubiquiti Unifi

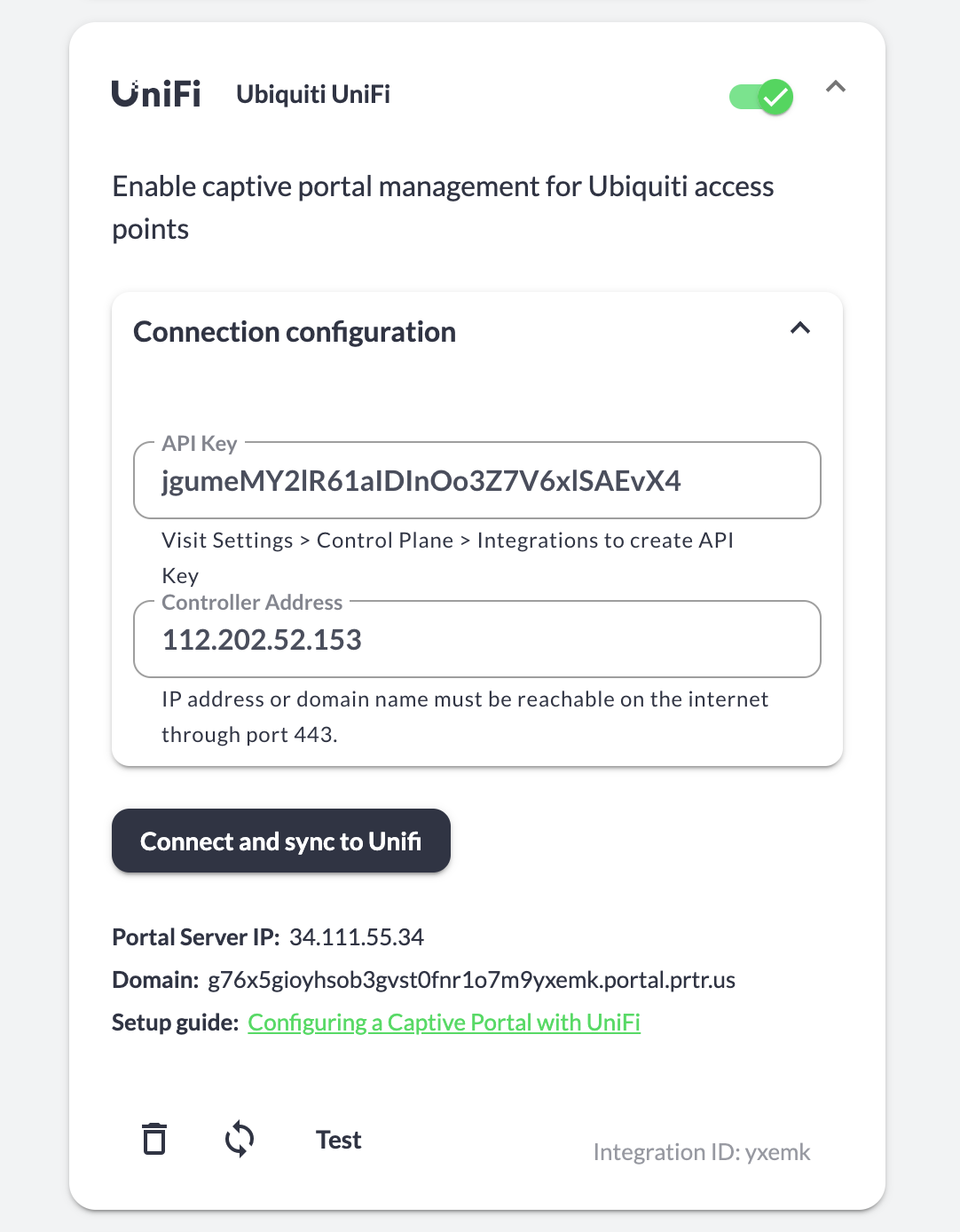

2. Configure API Connection

• Create and paste in the API Key from your Ubiquiti Dashboard (Settings > Control Plane > Integrations tab)
• Enter the IP address or domain name of your controller (do not include https://)
• Ensure your controller is reachable on port 443
• If you use an allowlist for incoming connections, add 34.42.34.43

3. Perform Initial Sync

• Click Perform initial sync to import your network configuration
• Wait for the sync to complete

1. Access Hotspot Settings

• Visit Insights > Hotspot > Landing Page tab
• Select the gear tab on the right

2. Reset Configuration

• Use the red "Restore Default Settings" button to reset your configuration to a known state

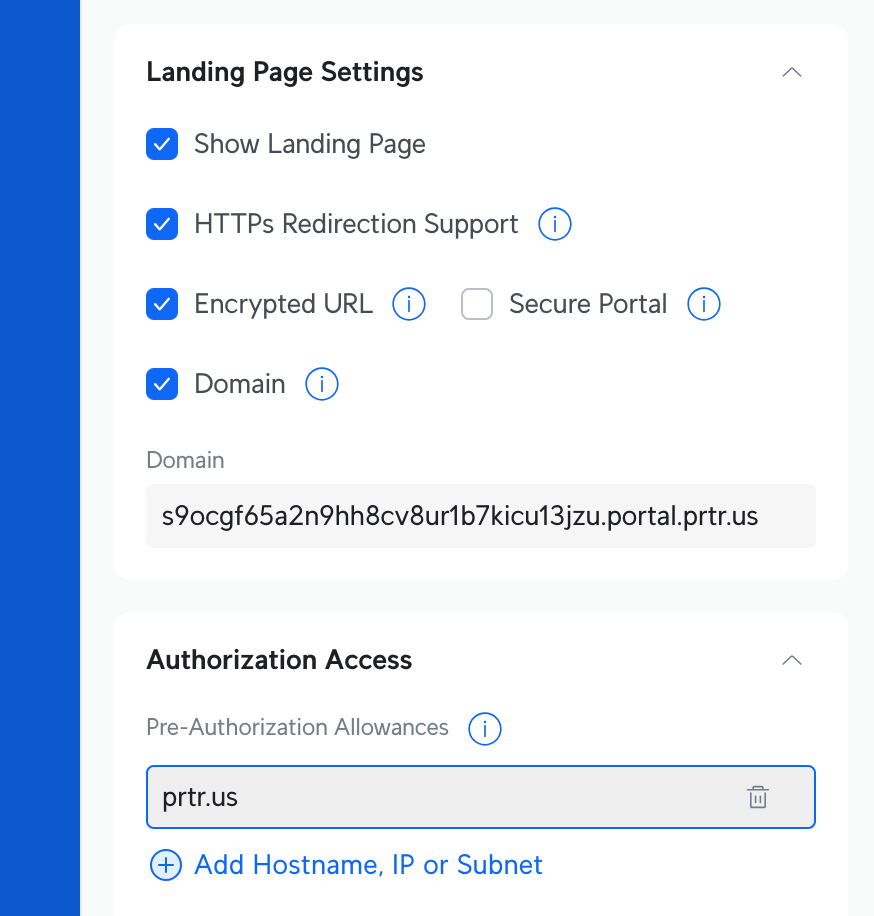

3. Configure Portal Domain

• Select the "Domain" option
• Paste in the domain displayed in the Porter Dashboard integration
• It should look similar to: vd9kboctgy6ek2lg0guw36mpbn2bs2ua.portal.prtr.us

4. Set Authorization Access

• Under Authorization Access, select "Add Hostname, IP or subnet"
• Paste in prtr.us

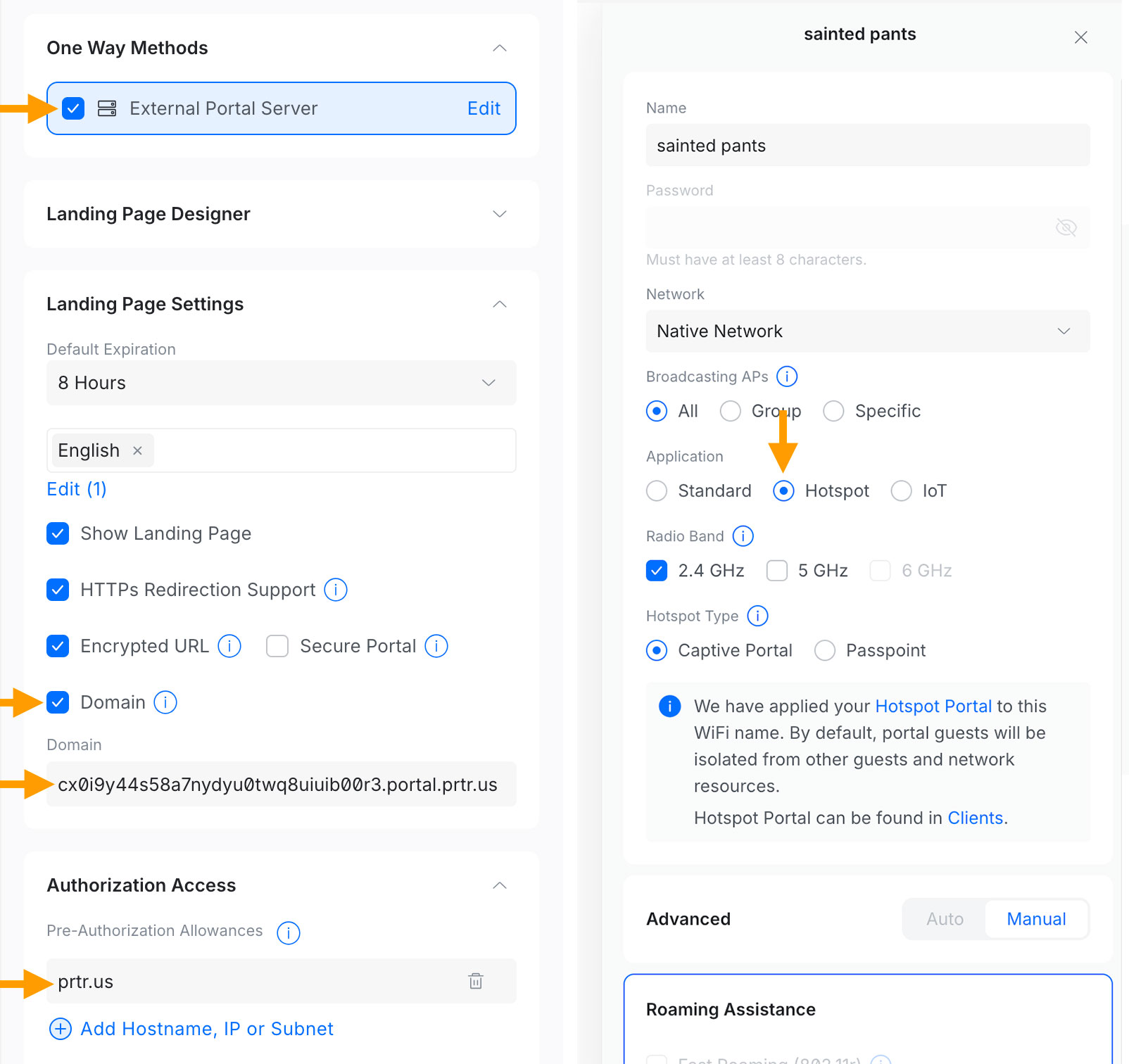

5. Configure External Portal Server

• Select the lock icon tab at the top
• Select the checkbox for external portal server
• Paste in 34.111.55.34 and save
• Select the “Save” button a second time on the bottom

6. Save Configuration

• Save your settings using the button at the bottom

1. Map Access Points to Locations

• In your Porter Dashboard Ubiquiti integration, select Access Point to Location Map
• View and set the Location(s) that will be used for each access point
• The default Location will be used unless overridden by an additional mapping

2. Configure Information Collection

• Select your Location’s name in the side menu
• Select Captive Portal from the side menu
• If the Location is correctly mapped, you will see a notice at the top of the page
• Select Collect Info, then configure what information you’d like to collect

Note: Google and Facebook authentication options are not available for captive portals due to vendor restrictions.

1. Initial Connection Test

• Open the list of Wi-Fi networks on your phone
• Select the guest network
• The portal page should appear automatically within a few seconds
• On Android, you may need to tap the notification to sign in

2. Re-testing After Previous Connections

If you have previously joined the network and need to test again:

• Navigate to the Ubiquiti dashboard under Insights > Hotspot
• Select your phone from the device list
• Select "Unauthorize"
• Re-join the network with your phone to view the portal sign-in page again
